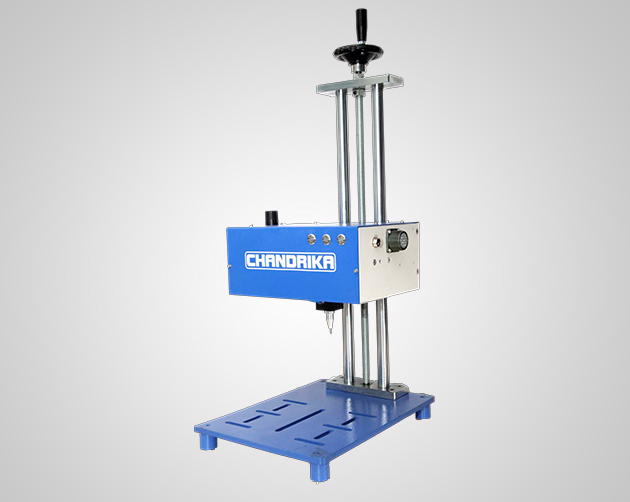

DOT PIN MARKING MACHINE

• Extremely affordable & User friendly Marking Machine available in Market.
• High quality, permanent, programmable marking to mark the data on a wide range of materials — from soft plastics to hard metals up to 60 HRC
• Marking Area Window of 6” x 4” (150 x 100 mm)
• Hand Held Portable Model Marking Machine with Marking Area 4” x 2” (100 x 50mm)
• High Speed Marking with operational reliability
• Mechanical Simplicity
• Very low Maintenance
• Using Check Position Mode [JOG], user can check all positions of line / shape starting position to ensure no loss of marking plates.
• Automatically generates Serial numbers, Date, Time, Shift codes, QR Code, etc.
• Capable of Marking Texts Data , Geometrical Shapes like Sqaure, Circle, Oval, Rectangle.
• Capable of Marking Customized logos & Vector Images
• All system fonts are supported with special logo fonts.
• Marking head weight: approx 4 kg.
• Controller weight : approx 1 kg.
• Operating temperature : 0 to 50 degree.
• Marking area : 150 x 100 mm.
• Pin material : Tungsten carbide.
• Marking speed : Adjustable ( depend on material and character height )
• Marking depth : can mark up to 0.6 mm. ( depend on material and hardness)
• Communication : USB
• Compact, convenient controller that can be operated through Computer / Laptop / Palmtop / Tablet PC.
• Start-Print footswitch and pushbutton station
• Very user friendly menu driven software.
• Customized solution for integrating the Marking software with Customer’s ERP for extracting the Data & Marking the same on the Product.
• Maximum pin stroke : up to 10 mm. ( depend on pin selection )
• Robotic cable length : 2 Meter standard ( custom length can be possible )
• Air pressure : 5 to 6 bar.
